Protection against theft, good burglary resistance.

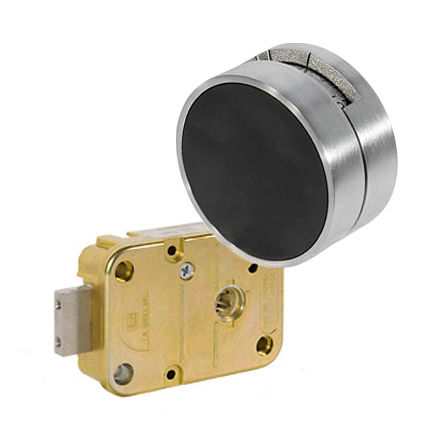

Reliable, changeable mechanical combination safe lock for initial installation or retrofitting for AHICO I-M (EN III-V) class burglary safes.

AHICO grade "B" burglary certificate.
EN 1300 "B", ECB.S "B", VdS "2" and UL 2M grade burglary certificate.

Safe lock case, bolt and drop lever of die-cast zinc.
3x double spring arm coupling combination wheels, 1 000 000 possible variations.
Integrated relocker: bolt blocking in case of manipulation of the lock cover.
Standard deadbolt.
8,7 mm bolt throw, deadbolt with 2x M4 threaded holes.
Right or left hand (upside down) safe lock opening clockwise (turning the key to the right).
Separate change and opening marking.
Change is performed at the back of the lock using a change activator (steel, 85 (50) mm long).

La Gard 1730 dial and ring.
Top reading.
Die-cast dial, satin chrome finish, black numbers.
Separate opening and change marking.
74 mm outer diameter.
102 (usable 79) mm long die-cast spindle.
2x M4x8 mm fastening screws.

Prepared for mounting, standard mounting holes (3). Fastening screws (2x M6x32 mm, 1x M6x10 mm) and spline included (the spline is compatible with all La Gard dial&ring/spindle combinations, but not with all La Gard mechanical combination safe locks).
Admissible mounting positions: horizontal (bolt left), vertical (bolt up), vertical (bolt down), horizontal (bolt right).

Brass colour safe lock.
